Aluminium U-channels
U-shaped aluminium channels for edging, framing and sliding guides. Every model below shows its catalogue drawing, code, dimensions, wall thickness and weight.
Model table
| Drawing | Model | Key dimensions (mm) | Wall thickness | kg/m | Pcs/bundle |
|---|---|---|---|---|---|
 | 1003-0.7 | 76.2 x 25.4 | 0.45-0.53 | 0.177-0.209 | 6 |
 | CKIN111 | 25.03 x 38.9 | 0.75-0.83 | 0.316-0.15 | 30 |
 | CKIN277 | 65.9 x 18.7 | 0.7-0.78 | 0.357-0.398 | 8 |
 | GF-554 | 76.2 x 19.05 | 0.8-0.88 | 0.245-0.269 | 16 |
 | GF558 | 9.3 x 9.5 | 0.6 | 0.044 | 80 |

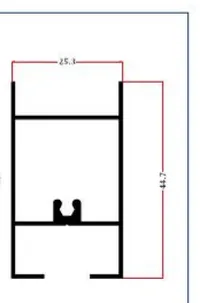

 | LB-19-0.9 | 25.4 x 44.2 | 0.83-0.75 | 0.381 | 10 |
 | SIB020 | 87.5 x 28 | 0.55-0.63 | 0.249-0.286 | 12 |
 | SIB044 | 12.7 x 12.7 | 0.55-0.63 | 0.063-0.071 | 60 |
 | SIB310-2 | 31.8 x 32 | 0.6-0.68 | 0.204-0.231 | 16 |
 | S-NG-05-0.7 | 28.3 x 14 | 0.55-0.63 | 0.125 | — |
 | Wd290 | 79 x 25 | 0.75 | 0.297 | — |
 | GF587-X | 19.05 x 19.05 | 0.65 | 0.99 | — |
 | H1 | 30.2 x 25 | 1.4 | 0.34 | — |
 | SIBO44-1 | 12.7 x 12.7 | 0.65 +0.02/-0.06 | 0.065 | — |
 | SK-GF-557 | 17.45 x 6.2 | 0.9 +0.02/-0.06 | 0.103 | — |
 | SK-GF-582 | 24 x 11 | 0.8 +0.02/-0.06 | 0.129 | — |
 | SK-GF-582-X | 24 x 11 | 0.7 +0.03/-0.05 | 0.113 | — |
 | U2X4 | 48 x 12 | 0.8 +0.02/-0.06 | 0.153 | — |
 | U93 | 9.3 x 9.3 | 0.6 +0.05/-0.06 | 0.044 | — |
 | 19069 | 25.4 x 12.7 | 0.7 +0/-0.04 | 0.094 | — |
 | AS-0161 | 44.5 x 30 | 1.2 | 0.34 | — |
 | FWQ071A | 44.3 x 21 | 1.4 | 0.428 | — |
 | FWLO01A | 73 x 26.9 | 1.2 | 0.427 | — |
 | FWL001B | 73 x 26.8 | 1.1 | 0.392 | — |
 | FWL001C | 73 x 26.7 | 1 | 0.358 | — |
 | FWL001D | 73 x 26.7 | 0.9 | 0.329 | — |
 | FWL001E | 73 x 26.6 | 0.8 | 0.295 | — |
 | FWLO01F | 73 x 26.5 | 0.7 | 0.26 | — |
 | FWS-070 | 30 x 40 | 0.8 | 0.232 | — |
 | FWS-074 | 24.85 x 13.7 | 1.1 | 0.62 | — |
 | FWY-102 | 12.6 x 12.6 | 1.1 | 0.106 | — |
 | FWS-080A | 13.7 x 15 | 1.4 | 0.154 | — |
 | FG6024 | 12 x 10.35 | 0.75 | 0.065 | — |
 | FW-3002 | 18.91 x 21.6 | 0.61 | 0.107 | — |
 | FWQ71B | 34.8 x 20.25 | 1.2 | 0.388 | — |
 | 7320 | 57 x 25.8 | 1.15 | 0.344 | — |
 | 7321 | 72 x 25.8 | 1.15 | 0.464 | — |
 | V4420 | 44.31 x 19.7 | 1.5 | 0.371 | — |
 | FWS-049 | 25 x 26 | 2 | 0.34 | — |
 | FWS-038 | 20 x 16.92 | — | 0.097 | — |
 | FWS-080A | 13.7 x 15 | — | 0.154 | — |
 | FWB002A | 51 x 40.6 | — | 1.53 | — |
 | FWS-032AB | 13.9 x 29.9 | — | 0.103 | — |
 | FW-40.3 | 41.9 x 40.3 | — | 0.117 | — |
 | FW-36.3 | 37.9 x 8 | — | 0.108 | — |
 | FW-32.3 | 33.9 x 8 | — | 0.1 | — |
 | FWS-104 | 21 x 12.8 | — | 0.152 | — |
 | K3296 | 74 x 34 | — | 0.418 | — |
 | K3294 | 74 x 26 | — | 0.309 | — |
 | A1139 | 57.1 x 27.2 | — | 0.287 | — |
 | A1140 | 73.5 x 26.8 | — | 0.362 | — |
 | 3888 | 46.1 x 24.1 | 1.05 | 0.745 | — |
 | 4289 | 20.4 x 18 | 1 | 0.148 | — |
 | K1607 | 67.7 x 24.5 | — | 0.538 | — |
 | K3293 | 57.2 x 25.38 | — | 0.32 | — |
 | K3295 | 74 x 24 | — | 0.364 | — |
 | K3291 | 57.2 x 25.38 | — | 0.244 | — |
 | WM146 | 14.6 x 23.9 | 1.05 | 0.209 | — |
Drawings cropped from the catalogue; data exactly as published. Finishes: anodised, powder coated, wood grain. Flexible MOQ — no minimum for models with an existing mould. Lead time 10–30 days depending on colour and finish. Alloy and temper are confirmed at quotation.
FAQ
What drawings do you need for a quote?
Send drawings in DWG, PDF or JPG — or the model code from the table above.
Can I get samples before ordering?
Yes — samples are available on request; details at quotation.
How is quality checked before shipment?
Inspection before loading; third-party inspection welcome. Lead time is 10–30 days, depending on colour and finish.
